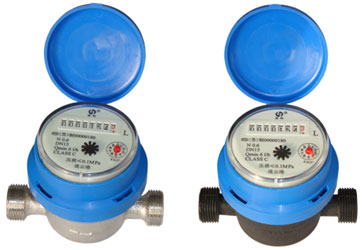

PD98TAR-15E/H (8 digits, stainless steel or plastic body)


APPLICATION: MEASURING THE TOTAL VOLUME OF COLD POTABLE WATER PASSING THROUGH THE METER.

OPERATING CONDITION:
THE MAX.ADMISSIBLE PRESSURE 1.6MPa
RESISTING WATER TEMPERATURE OF 50℃

SPECIALITY:
*SEMI-POSITIVE ROTARY PISTON TYPE
* STRIGHT READING REGISTER
*SHIELED MAGNETIC TRANSMISSION
* INSTALLATION IN ANY POSITION
* ROBUST AND RUGGED CONSTRUCTION

Maximum permissible error:
Between qt (included) and qs is ±2%;
Between qmin and qt (excluded) is ±5%.
NOTE: The technical data conform to ISO4064 standard, class C.

FLOW-ERROR CURVE

SPECIFICATION AND OVERAL DIMENSIONS


Description

Unit

Hydraulic data and dimensions

Nominal size

mm(inch)

DN15(1/2)

Overload flow-rate (qs)

l/h

1200

Permanent flow-rate (qp)

l/h

600

Transitional flow-rate (qt)

l/h

9

Minimum flow-rate (qmin)

l/h

6

Start flow-rate

l

≤2

Min. reading

l

0.005

Max. reading

m3/h

9999999.99

Max. working pressure

MPa

1.0

△P at the qs

MPa

≤0.1

L

mm

204

I

mm

110

B

mm

80

H

mm

95

Weight

Plastic body with connections

Kg

0.53

Plastic body without connections

0.29

Stainless body with connections

0.94

Stainless body without connections

0.7

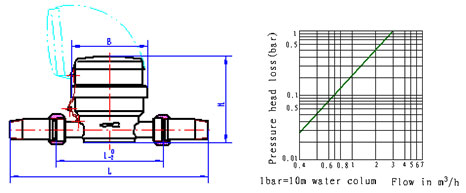

OVERALL DIMENSIONS    PRESSURE LOSS CURVE
